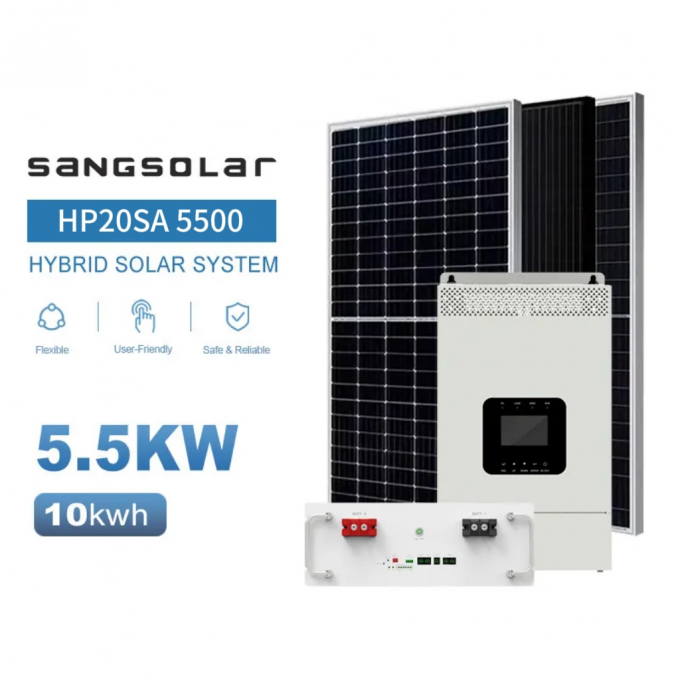

Sangsolar 3.5kw 5.5kw 48v 220v 230v Off Grid Solar Power System
X
| Output Power Range | 10~20 Kwh |
| PV Maximum Input Power | 4000W/6000W |
| MPPT Voltage Range | 85~400V |
| Inverter Output Voltage | 220/230VAC3% |
| Output Frequency | 50-60HZ |
| Application | Home |
| Battery Type | Lithium Ion |
| System Type | Stackable |
Details
| Work Time (h): | 24hours | Type: | Split |

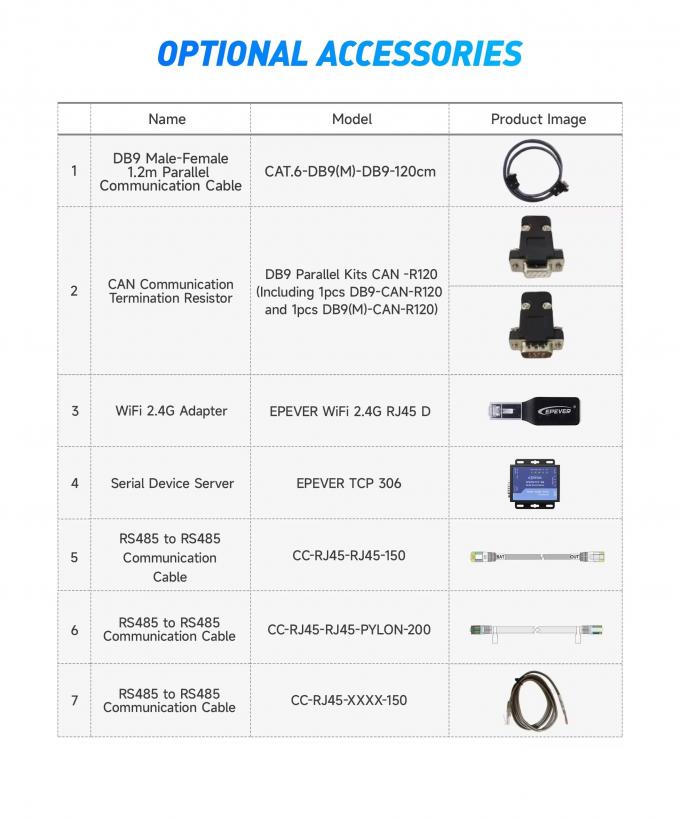

| Communication Port: | RS485, RS232, CAN | Enclosure: | IP20 |
| Inverter Efficiency: | ≥99.5% | Product Name: | MPPT Solar Hybrid Inverter 3.5KW 5.5KW |
| Output Voltage Waveform: | Pure Sine Wave | Communication: | RS485 With Optional 4G, WiFi, Or TCP Modules |
| Place of Origin: | Zhejiang,China | Brand Name: | Sangsolar |
| Certification: | CE | Model Number: | HP 20SA-solar system |
| Minimum Order Quantity: | 2 | Packaging Details: | 200*125*100(mm) |
| Highlight: | sangsolar off grid solar power system, 3.5kw off grid solar power system, 5.5kw off grid solar system |
Description
Sangsolar 3.5kw 5.5kw 48v 220v 230v with 5kwh 10kwh 15kwh lithium battery off grid solar power system without batter
Product descriptions from the supplier

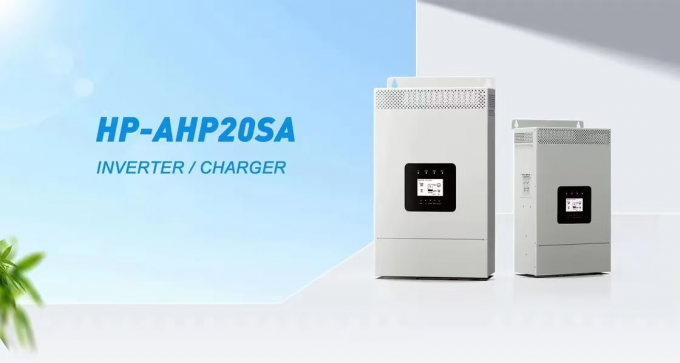

EPEVER HP-AHP20SA Series 3500W 5500W
High Frequency Hybrid Solar Inverter With MPPT

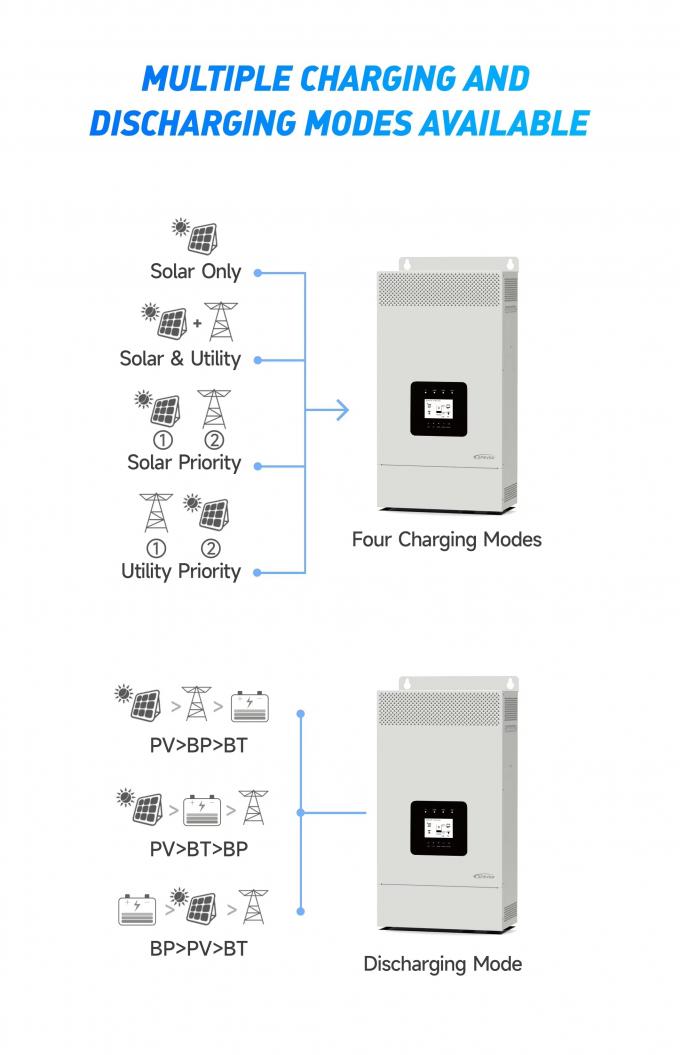

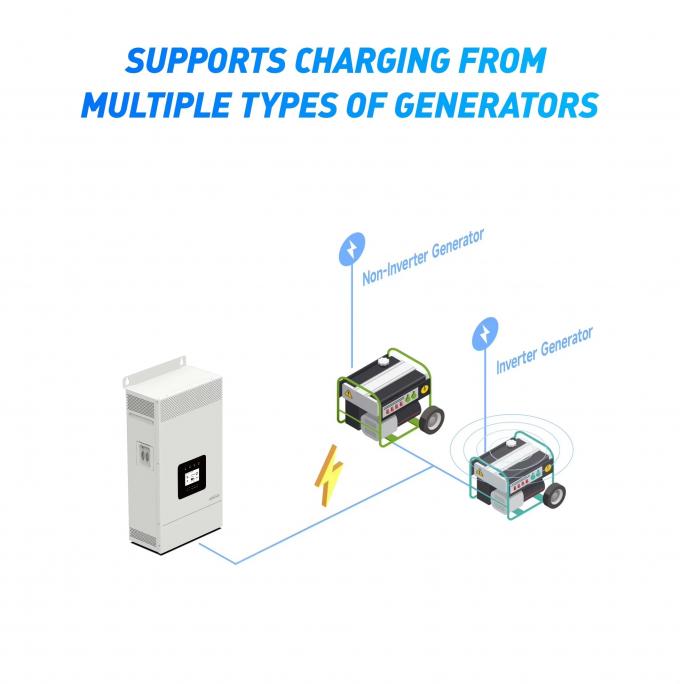

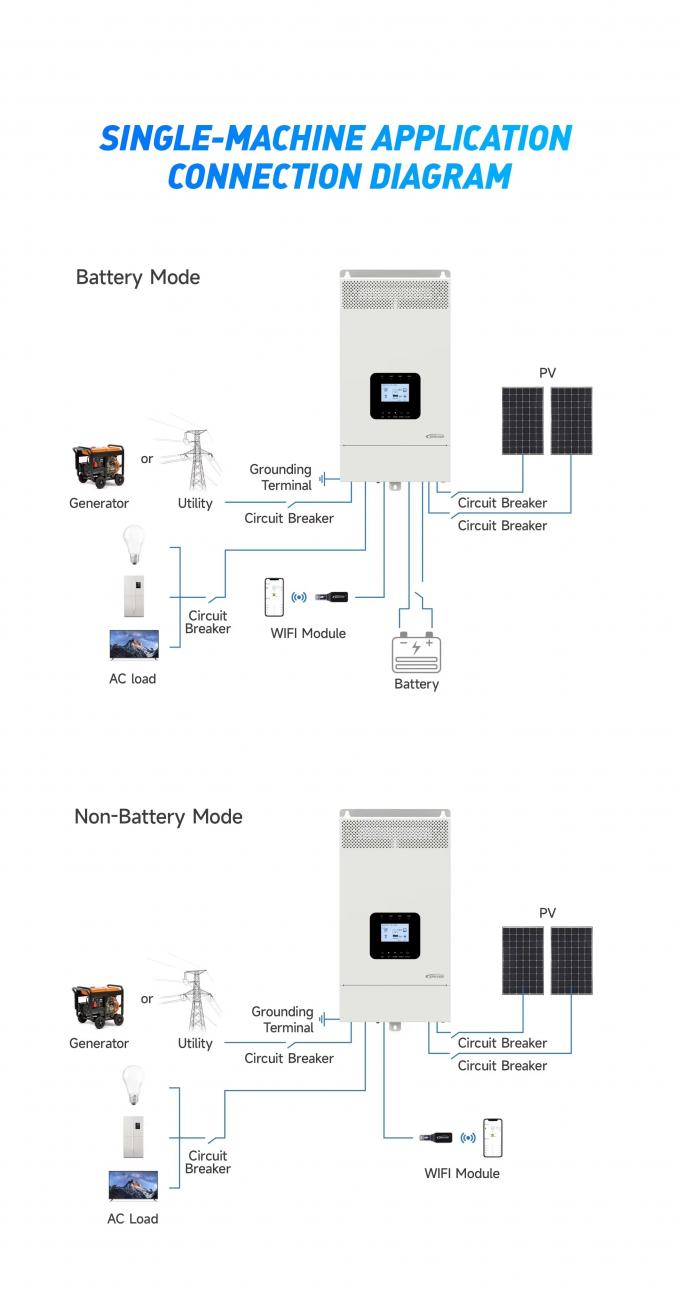

| The HP-AHP20SA series is a cost-effective product. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. |
Technical Specifications
| Model | HP3542-AH0650P20SA | HP5542-AH1050P20SA | |
| Utility input | Utility Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | |
| Utility Frequency | 45Hz~65Hz | ||

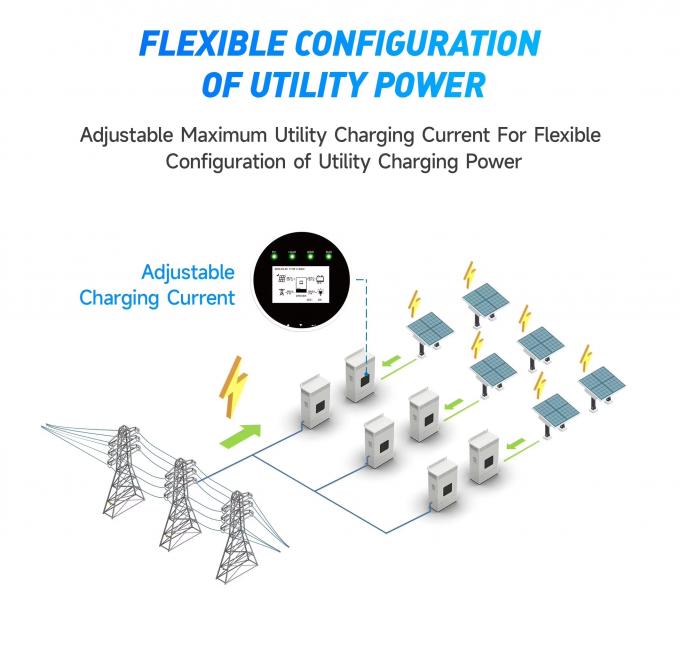

| Maximum Utility Charging Current | 60A | 100A | |
| Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | ||
| Inverter output | Inverter Rated Power (@30℃ | 3500W | 5000W |
| 3-second Transient Surge Output Power | 7000W | 8500W | |
| Inverter Output Voltage | 220/230VAC±3% | ||
| Inverter Frequency | 50/60Hz±0.2% | ||
| Output Voltage Waveform | Pure sine wave | ||
| Load Power Factor | 0.2~1(VA ≤ Rated output power) | ||
| THDu (Total Harmonic Voltage Distortion) | ≤3% (48V resistive load) | ||
| Maximum Load Efficiency | 92% | ||
| Maximum Inverter Efficiency | 94% | ||
| Solar controller | PV Maximum Open-circuit Voltage | <500V (At minimum operating environment temperature) 440V (At 25℃) | |
| MPPT Voltage Range | 85~400V | ||
| PV Maximum Input Power | 4000W< | 6000W | |
| PV Maximum Charging Current | 60A | 100A | |
| MPPT Maximum efficiency | ≥99.5% | ||
| Battery | Battery Rated Voltage | 48VDC | |
| Battery Work Voltage Range | 43.2VDC~60VDC | ||
| Battery Maximum Charging Current | 60A | 100A | |
| Others | No-load Losses | ＜0.7A | ＜1.0A |
| Test condition: No PV and utility, AC out is on, fan stops@48V input | |||
| Standby Current | ＜0.15A | ||
| Test condition: No PV and utility, AC out is off, fan stops@48V input) | |||
| Work Temperature Range< | -20℃~+50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) | ||
| Storage Temperature Range | -25℃~+60℃ | ||
| Enclosure< | IP20 | ||
| Relative Humidity | < 95% (N.C.) | ||
| Altitude | ＜4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | ||

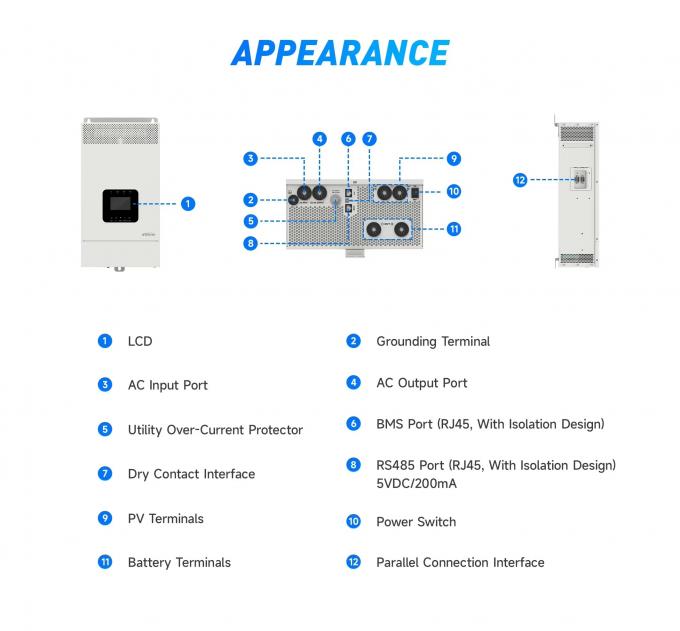

| Mechanical parameters | Dimension (Length x Width x Height) | 534mm × 288mm × 163mm | 590mm × 288mm × 163mm |
| Mounting size (Length x Width) | 512mm x 245mm | 568mm x 245mm | |
| Mounting hole size | Φ9mm/Φ10mm | Φ9mm/Φ10mm | |
| Net Weight | 12.0Kg | 15.0Kg | |
